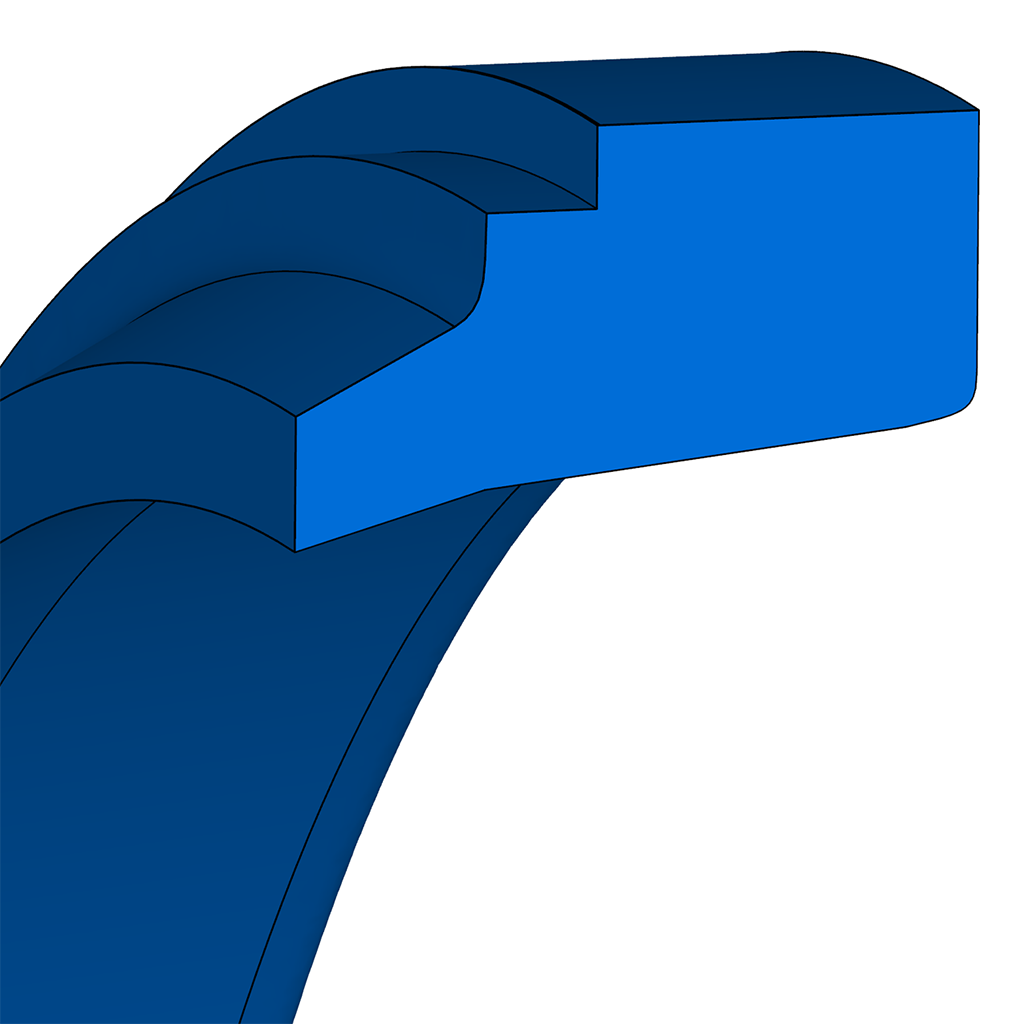

Merkel ®  Omegat OMK-E

Classification: Hydraulic seals

Product description: Two piece Merkel for sealing pistons ®  Sealing kit, consisting of a PTFE profile ring and an O-ring as a preload component, Merkel ®  Omegat OMK-E can be used to seal pressure on one side of the piston, among other things, in standardized housings that comply with ISO 7425/1 standards. The diameter of the rod complies with ISO 3320 standard. Extremely high pressure resistance and hardness, excellent thermal conductivity, excellent anti extrusion protection, high wear resistance, low friction, non stick slip Most Com

The Freudenberg series of static sealing solutions is used for applications where there is no movement between the sealing element and the surface. There is a difference between static axial seals and static radial seals, where the seal extends parallel to the central axis of the seal, and the central axis of the seal is arranged radially. The most commonly used static product is O-ring, which is standardized based on size and tolerance. DIN 32676 series clamp seal applications: Suitable for various pipeline connections in the beverage, food, and pharmaceutical industries, it is very suitable for flange connections that require more frequent opening. U-rings are used in non hazardous media to seal translational and rotational movements to resist corrosive media and pressure. In the food and pharmaceutical industry, they are mainly used for ball valves, flanges, rotary joints, valves, pumps, and accessories. The classic lip seal is U-shaped with U-shaped metal springs, made of pure polytetrafluoroethylene. According to the application, various PTFE variants can be provided, such as carbon fiber or glass fiber reinforced PTFE. The contact pressure can be changed by selecting the spring. U-shaped, V-shaped, and O-shaped springs can be used. U-rings can be manufactured as axial or radial acting components, which have inward or outward sealing functions. Friedenberg Sealing Group's Simrit oil seal, DICHTOMATIK sealing technology, GFD sealing element, German GEHR sealing, COG sealing technology, DICHTOMATIK sealing technology, Simrit oil seal
